TM Racing Hard Enduro 2 Stroke - 2025 EN 300 CARBY CORSE HARD ENDURO MODEL is the king of TM Italy's 2-stroke bikes, in the maximum engine size with a reliable carby.

TM Moto Street Legal 300 2 stroke enduro dirt bike is the choice for weekend warriors & hard enduro riders.

It faithfully reproduces the performance and feeling of riding the official bikes that race in the Enduro World Championship. It is equipped with very linear, controllable power delivery: the rider is always in full control.

For years, it has achieved outstanding results in the world championships. Particularly worth mentioning is its recent victory in its class at the 2021 world championship.

TM 300cc 2 Stroke Carby Engines:

Hand finished crankcases. Lightweight and strong Die Cast clutch casing, clutch inspection, water pump and ignition covers. Aluminium water pump rotor. Billet machined crankshafts running on roller bearings with ‘hi-tech’ crank-seals. Friction reduction coated pistons. High performance – long lasting clutches. ‘Cush-drive’ clutch baskets. Friction reduction hard coated clutch baskets. Friction reduction hard coated gearbox selector fork tips. Hardened / treated gear-shaft parts. Hydraulic clutch actuation. V-Force reed blocks. Keihin carburettors (MX/SMX/FT). Electric start. Balancer shaft. HGS Exhaust systems (with plated expansion chambers on EN / Road models). TMEES electronic exhaust valve control.

The large capacity TM Racing 300cc 2-stroke engines are synonymous with strength and durability, with each capacity engine having its own unique qualities in the terms of performance and power delivery characteristics. In 2019 the engines had a total re-design which featured a multitude of new and exciting additions to increase performance and ease of use for the rider, these engines were then updated once again in 2020. For the new model year we only see some small changes and revisions to these already ‘complete’ engines, including new crankshaft tolerances, revised cylinder ports and a new balancer shaft bearing set-up.

Whilst retaining some internal components, from the exterior, the latest generation engines have a whole new look and share nothing in terms of cast components and little in internal components with the previous class engine that was phased out in 2017. The complete re-design of this latest engine was born and produced to accommodate numerous changes, changes that include electric start on all models. The gearbox assembly also features friction reduction coated and treated parts to ensure smooth and precise shifting and a whole new gearbox assembly for the Enduro variants featuring 6 ratios (option on carburettor models). The recent addition of a balancer shaft reduces engine vibration, giving smoother performance, better ‘feel’ and a reduction in rider fatigue. The gear position sensitive ignition works alongside the TMEES exhaust valve control system, with the servo mounted to the cylinder and working directly to a revised pulley system. Constructed from some of the best materials for maintaining performance and reliability these already class leading engines that produce incredible, yet usable, controlled power and torque combined with quality ancillary components, have taken themselves to a new level. Power delivery, rider comfort and ultimate outright performance is optimally tailored in each discipline in all conditions in a way never seen before in off-road 2-stroke engines.

CHASSIS: The high-end specification of all TM Racing machines is well-versed and this model year is no exception. The specification list for a ‘production machine’ is vast and features numerous high-quality components throughout. We have have several small changes and revisions to further enhance the chassis that was already designed to improve handling, weight balance, overall machine weight (reduced), rider ergonomics and the visual look. All variants chassis’ and sub-frames will once again be constructed using aluminium, with each engine ‘capacity’ / variant having a chassis unique to that engine displacement. This ‘tailoring’ of the chassis to engine allows TM Racing to design and build each machine for minimal weight, compactness, and better handling characteristics with mass centralisation specific to each model. All chassis are constructed using the latest design elements that reduce overall chassis weight whilst maintaining maximum strength, matched to new revisions in chassis geometry / triple clamp angles that are specifically tailored to each model once again, allowing the best in handling characteristics for each model in the range. On all models, the now standard fitment KYB 48mm twin chamber fork, will continue to adopt the latest generation of internal friction reduction ‘coatings’ with some new internal settings to create a ‘softer’ feel for greater rider comfort and shock absorbtion. These latest generation forks are designed to give improved response for faster changes to the terrain, all still controlled by the more favourable spring and oil set-up which is still proving to give greater reliability and more consistent performance. The TM Racing shock absorber, made in house by the TM racing technicians, has seen some large internal changes over the last 2 years and will still adopt this latest ‘seal’ system designed to reduce friction and increase shock performance, also featuringwill be a brace of internal changes to increase smoothness, comfort and aid tracion. Combined with the latest swing-arms, revised linkage components and spindle diameters to limit and ‘control’ flex, the shock allows for a more progressive feel, giving improved track stability and maximising traction. The chassis and suspension components work together to achieve incredible handling characteristics on a multitude of surfaces, allowing for greater stability in all conditions, increasing traction and inspiring greater confidence to reduce lap-times. The aesthetic look of the machines will remain as per, where the latest chassis generation is not only ‘form’ but ‘function’, reducing the width of the bike reduced by 3cm to create a slimmer machine with better rider ergonomics and more freedom of movement. The current appearance of the latest generation model range is still one of the most striking to date, a mix of angles and curves that blend seamlessly into each other from front to rear. Beautiful, yet aggressive in its shaping, the body panels will feature a new decal scheme incorporating some brighter colour accents giving a more striking visual appearance.

‘FRESH AIR SYSTEM’: All TM Racing adult 2-Stroke models feature the ‘Fresh Air’ intake system which allows the engine air filtration system to breathe cleaner air, this system reduces particulate contamination of the air filter maximising power for longer duration. Air is channeled from the intake vents –  via the radiator panels and fuel tank –  to the airbox which houses a large volume air filter. The ‘Fresh-Air’ system also brings another added advantage in the form of a lower centre of gravity, with the fuel tank now positioned slightly further into the chassis around the engines cylinder, this ‘weight’ shift, combined with the latest frame geometry and suspension, all work harmoniously to maximise the handling characteristics of each machine. TM Racing have created a line of incredibly nimble and agile machines, better handling characteristics, turning, stability and weight losses were seen throughout the current chassis guise as well as gains in engine performance.

WHEELS: The CNC machined billet aluminium hubs, laced to anodized Excel rims, feature the latest spoke arrangement with a ‘tapering’ design profile in a stronger material, a material treated to increase corrosion resistance, larger spoke nipples feature on the front wheel also for added strength. The wheel configuration allows for the best in strength and durability of the wheel components whilst reducing the un-sprung weight by a small margin. The CNC machined hubs, featuring external dust seals encircling CNC machined wheels spacers to further protect the wheel bearings, are mounted to the suspension components via large diameter hollow spindles. The larger diameter spindles, machined through their centres to lower weight, allow for a more rigid fixing off the wheel reducing the flex and allowing the suspension to work more effectively.

BRAKING SYSTEMS: The braking systems for the TM racing model range has also received some new components in the form of some new options for the SMK range and new Brembo front brake pumps for some adult models. The entire model range continues to feature high quality oversize wave discs working with TM Racing’s ‘mix’ of components. The master cylinders are connected to the brake calipers with lined and braided high quality racing brake lines that are designed to minimise expansion and ensure maximum braking effort is always transmitted to the calipers. This tried and tested collaboration of parts is regarded as one of the best braking systems in many tests and by racers alike. These braking systems keeps performing in the harshest conditions giving great efficiency and inspiring confidence always. The rear brake system is actuated by a twin bearing pivot-mounted, billet machined aluminium foot lever with a replaceable tip.

TRIPLE CLAMPS: The triple clamps fitted to TM Racing motorcycles competition range are CNC machined from block aluminium and each clamp is a work of art. The clamps intricate machining, most of which can only be seen from the underside, gives a structure designed to be supremely strong whilst keeping weight to minimum. The triple clamps also come with an optional ‘damped’ bar mounting system that through a tapering rubber cone arrangement, allow vibrations that can be transmitted through to the handlebar area to be reduced, whilst also allowing some ‘give’ to the bars in the event of a fall reducing the chances of more severe damage occurring to the handlebars and the components adorning them. The handlebars are secured, via the optional ‘damped’ bar mounting system, by billet machined bar clamps, with the top bar clamps featuring a machined TM Racing logo on their upper face.

CLUTCH ACTUATION: All TM Racing machines come fitted with a Hydraulic actuated clutch as standard, the master cylinder, made by Brembo, transmits fluid via a lined and braided hydraulic line to TM Racing’s own ‘slave’ cylinders. With separate slave cylinders every engine, each unit designed to fit and perform for each model giving a balanced clutch feel between all engine size variants, with both single and dual seal pistons in the slave cylinders depending on model application. The Brembo master cylinders, working with the braided hose that limits hose expansion under extreme load, gives great feel and precise clutch control with great durability when combined with TM Racing’s ‘cush-drive’ (hard coated) clutch baskets, which on all variants 250cc and over, are coated with a hard wearing, friction reduction coating. All clutches are multiple disc ‘wet’ units with multi sprung pressure plates.

ELECTRIC STARTING: The ES abbreviation in any motorcycles descriptive from the TM racing range denotes that the machine has ‘Electric Start’. The TM Racing Electric start system is powered by a new, lightweight, Lithium-Ion battery that is recharged during engine running by the electrical system. Electric start is now standard fitment on all models and engine capacities over 144cc.

ENDURO / ROAD EQUIPMENT: All Enduro and ‘Road’ designated variants of the TM racing model range come with a full, self-generating ‘LED’ illuminated lighting system (which can operate also from the battery system on Electric Start models) powered by the crankshaft mounted electrical generator. This system includes a complete ‘side’, ‘dipped’ and ‘main’ beam headlight assembly – AHO specific, a rear taillight and rear brake light – operated by both front and rear brake actuation cylinders – with rear number plate illumination, a turn signal ‘Indicator’ system and of course, a horn. All these functions are controlled via a handlebar mounted multi-switch that also includes an ‘engine stop’ button. Working alongside the lighting part of the system is an illuminated digital speedometer with ‘trip’ functionality, this speedometer unit registers the vehicles given speed via a sensor located on the rear wheel of the motorcycle.

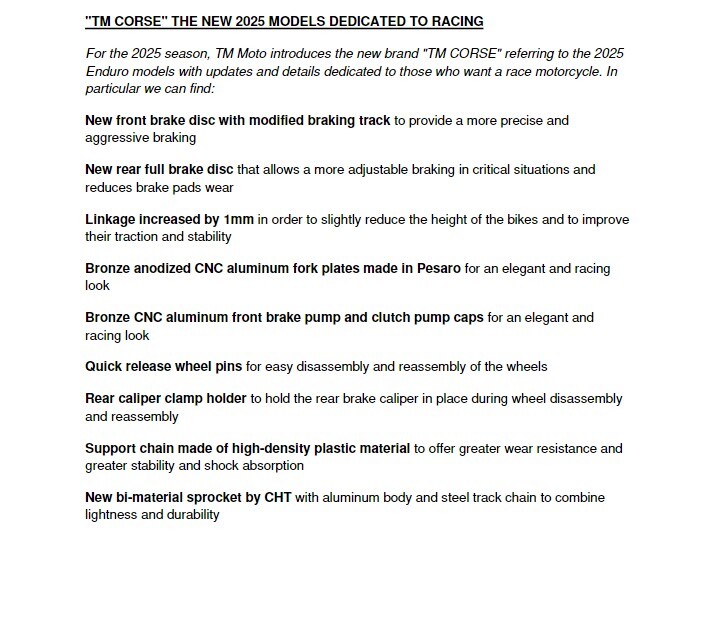

All the 2025 models are the result of a design overhaul in all areas: from the smallest parts to the most sophisticated electronics.

TM Corse model technical details:

  • New front brake disc with modified braking track for more precise and aggressive braking
  • New full rear brake disc that allows more modulable braking in critical situations and reduces brake pad wear
  • Shock absorber linkage fork with 1mm increased wheelbase that slightly reduces the height of the bike and improves traction and stability of the bike
  • Made in Pesaro CNC aluminium fork triple clamp anodised bronze
  • Front brake pump and clutch reservoir caps in CNC aluminium bronze
  • Wheels axle with quick release pullers for greater ease in disassembling and reassembling
  • Rear caliper block support to keep the rear brake caliper in position during disassembly and reassembly of the wheel
  • Chain guide in high density plastic material for greater resistance to wear and offers greater stability and shock absorption
  • New Bi-Material sprocket by CHT with aluminium body and steel chain track to combine lightness and durability
  • Radiator fan that allows to contain the engine temperature in favour of a better performance even in critical conditions
  • Revised and improved frame structure
  • For the 2T versions new throttle body with 39mm diameter for a more linear delivery, with increased power at low revs to allow greater ease of riding
  • CNC aluminium engine side covers for greater impact resistance, bronze anodised for an aggressive and Racing look
  • Silencer with new TM Corse logo for the 2T versions
  • Racing version license plate holder with reduced inclination
  • Hand guards included for all models
  • New colour plastics with “Full Grey Quantum” look that distinguishes the new TM Moto range, plus new dedicated graphics with new TM Corse logo

For TM sales & enquiries, call the APW Motorcycles team on (02) 4333 4797 or admin@apwmotorcycles.com.au we're happy to help.

(2025EN300CARBYCORSE)

FEATURES

  • Hard Enduro upgrades
  • Street legal with a NSW vehicle registration.
  • Handmade in Italy
  • 300cc two stroke
  • Fuel injected
  • Service & parts fully supported in Australia
  • Hand finished crankcases
  • Lightweight and strong CNC casing, clutch inspection, water pump and ignition covers.
  • Aluminium water pump rotor.
  • Billet machined crankshafts running on roller bearings with ‘hi-tech’ crank-seals.
  • Friction reduction coated pistons.
  • High performance – long lasting clutches. ‘Cush-drive’ clutch baskets.
  • Friction reduction hard coated clutch baskets.
  • Friction reduction hard coated gearbox selector fork tips. Hardened / treated gear-shaft parts
  • Emoticon controlled ‘TBi’ fuel Injection systems with separate electronic control oil distribution.
  • Electric start.
  • Balancer shaft.
  • HGS Exhaust systems (with plated expansion chambers on EN / Road models).
  • TMEES electronic exhaust valve control.
  • Gear position sensitive variable ignition timing / power-valve control and fuel injection system operation.

TM Racing Hard Enduro 2 Stroke - 2025 EN 300 CARBY CORSE HARD ENDURO MODEL Specifications


CHASSIS

  • WEIGHT (WITHOUT FUEL) - 100 Kg
  • TANK CAPACITY (APPROX.) - 8.5 Lt/12 Lt (Optional)
  • FRONT BRAKE DISC DIAMETER - 270 mm
  • REAR BRAKE DISC DIAMETER - 242 mm
  • FRONT PUMP/BRAKE CALIPER - Brembo
  • REAR PUMP/BRAKE CALIPER - Nissin
  • CHAIN - Regina ZSA

ENGINE

  • TRANSMISSION - 6 speed
  • STARTER - Electric start only
  • STROKE - 72 mm
  • BORE - 72 mm
  • CLUTCH - Multidisc in oil bath
  • DISPLACEMENT - 293.2 cm3
  • ECU - eMoticom
  • THROTTLE BODY TM - Moto
  • CARBY - yes

Suspension & Wheels

  • FRAME DESIGN - Self-tempering aluminum deltabox type, single-beam, with extruded and forged details
  • FRONT SUSPENSION - Kayaba Ø 48 mm
  • GROUND CLEARANCE - 35.5 cm
  • REAR SUSPENSION - TM Moto
  • SEAT HEIGHT FROM THE GROUND - 98.5 cm
  • STEERING HEAD ANGLE - 63°
  • FRONT SUSPENSION TRAVEL - 310 mm
  • REAR SUSPENSION TRAVEL - 300 mm
  • WHEELS 18" / 21*



SKU 2025EN300CARBYCORSE
Model # 2025 EN 300 FI CORSE MODE
Brand TM Racing - TM Moto Bikes
